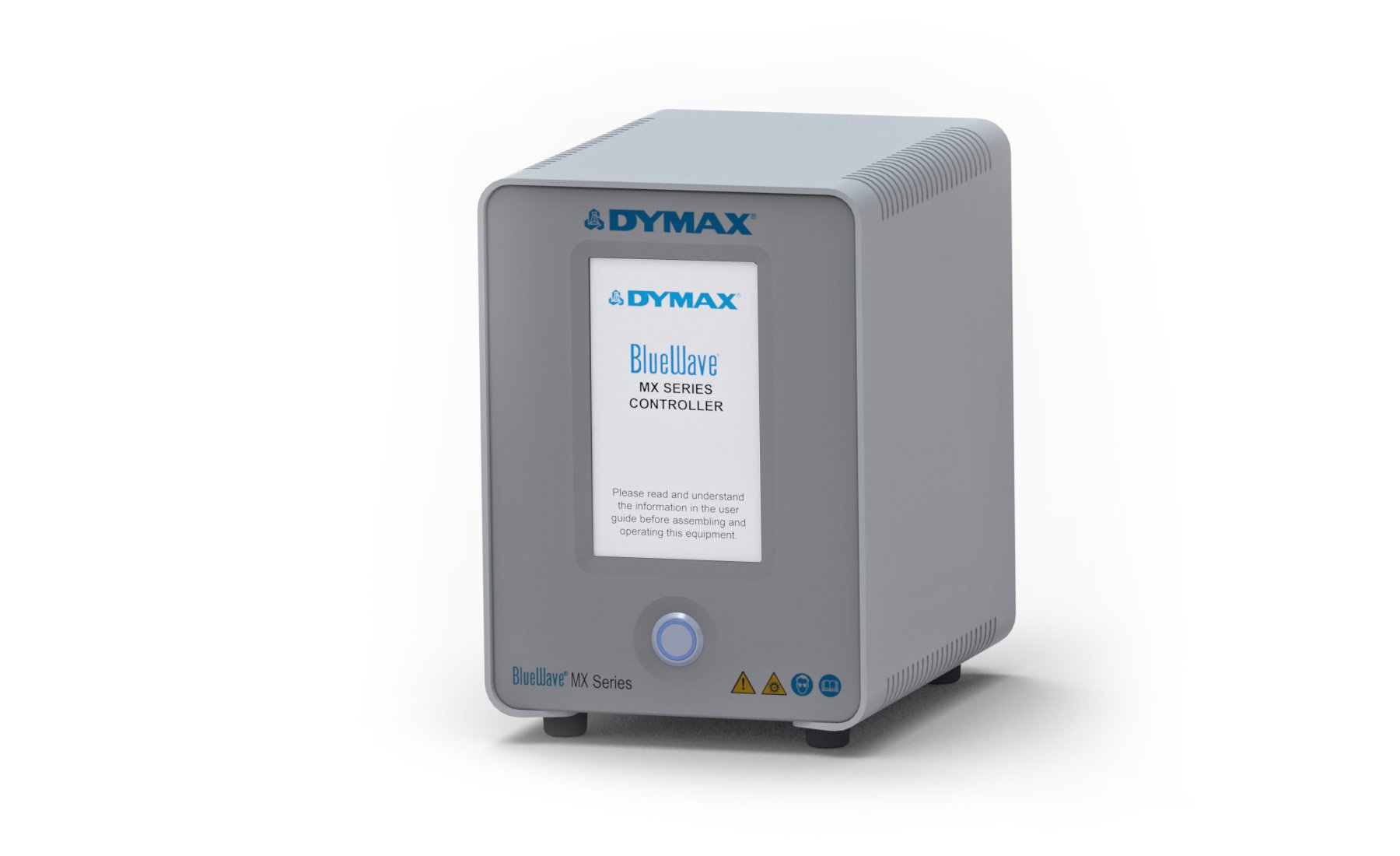

BlueWave MX-Series Multichannel Controllers

Independently Drive Up to Four BlueWave MX-Series Emitters with One Controller


CE Marked – Available Globally

Dymax BlueWave® MX-series multichannel controllers are available in 2- and 4-channel versions, allowing manufacturers to use just one controller to run up to four emitter work stations. Each emitter can be controlled independently of the others or in any combination to produce flood and light bar patterns. Activation can be by foot pedal or through an enhanced PLC and interface. The controllers are compatible with all Dymax MX-series emitters including the BlueWave® MX-150 spot lamp, BlueWave® MX-250 flood lamp, and BlueWave® MX-275 light bar. Interconnect cables are available in 2-, 5-, 10-, and 20-meters lengths, allowing emitters to be stationed further from the controller.

Controllers are designed to provide manufacturers with greater curing flexibility. Users can start with a single emitter and add others as their applications grow. Emitter models can be utilized in different combinations with the same controller. For those requiring a spot-cure system, BlueWave® MX-150 emitters can be outfitted with single or multi-pole lightguides to provide up to 16 individual cure spots from a single controller.

Compatible with BlueWave® MX-150 and BlueWave® MX-250 emitters with firmware version 1.08 or higher. Dymax can easily upgrade emitter firmware to the latest versions by returning your emitter to one of our service facilities.

Features

Features

  • One controller runs up to four emitters independently by foot switch or as an integrated light bar (50 mm x 200 mm)
  • Reduced controllers decreased required footprint and cost
  • Compatible with BlueWave MX-150 and MX-250 emitters (365, 285, 405 nm versions)
  • Users can easily switch between LED spot and flood curing configurations
  • Simple on/off operation using production mode
  • Application specific curing profiles/programs can be easily entered, stored, and recalled when needed
  • Units can be password protected so only production mode can be accessed by workers
  • Improved user interface: touch screen with full keyboard and stylus for easy menu navigation (attaches to unit)
  • Instant on/off requires no warm up period, improving energy efficiency
  • LED temperature management and system monitoring maximizes operation without overheating, monitors critical system functions, and ensures maximum LED life
  • Remote I/O interface enables easy incorporation into automated systems and improved PLC interface flexibility

Resources

Resources

System Specifications

Looking for additional technical specifications? Check out our Resource Library or talk with our technical experts.

Get in touch
Property Specifications
Power supply input 100-240V≈ 2.5A, 50-60Hz
LED timer 0.1 to 999 seconds, max (timer accuracy 0.1%)
LED activation Foot pedal, LCD touchscreen, or PLC
Cooling Air cooled
Controller dimensions (W x D x H) 5.14 in x 7.19 in x 7.35 in [13.1 cm x 18.3 cm x 18.7 cm]
Weight 2.6 lbs. [1.18 kg]
Operating environment 10 to 40°C (50°F to 104°F), 0-30% relative humidity, non-condensing
Unit warranty 1 year from purchase date

Looking for additional technical specifications? Check out our Resource Library or talk with our technical experts.

Get in touch

Part Numbers

Build a complete solution or find replacement parts for your project

Limited quantities, please submit RFQ for pricing and availability.

43181

BlueWave® MX-Series 4-Channel Controller with No Power Cord.

Note: For European customers, the appropriate power cord will be added.

Global

43182

BlueWave® MX-Series 4-Channel Controller with North American Power Cord

North America

43183

BlueWave® MX-Series 4-Channel Controller with Asian Power Cord (Type G)

Asia

43184

BlueWave® MX-Series 2-Channel Controller with No Power Cord.

Note: For European customers, the appropriate power cord will be added.

Global

43185

BlueWave® MX-Series 2-Channel Controller - North American Power Cord (115V plug)



Global (CE Marked)

43186

BlueWave® MX-Series 2-Channel Controller with Asian Power Cord (Type G)

Asia

C- 43182 (M40025)

Clearance - BlueWave® MX-Series 4-Channel Controller, North American Power Cord

Limited quantities, please submit RFQ for pricing and availability.

Global (CE Marked)

C- 43185 (M20204)

Clearance - BlueWave® MX-Series 2-Channel Controller - North American Power Cord (115V plug)

Global (CE Marked)

43010

10-Meter Interconnect Cable Assembly

Global

43011

20-Meter Interconnect Cable Assembly

Global

41395

3-Sided Acrylic Shield – works with stand (part #41268)

Global

43019

MX Emitter Stand Kit – Attaches to Stand (part #41268) and holds up to 4 emitters

Global

43070

MX Emitter Stand – Includes LED stand (part #41268) and kit (part #43019) for up to 4 emitters

Global
