BlueWave MX-275

High-Intensity LED Flood-Curing System with Line Pattern Emitters


CE Marked – Available Globally

The BlueWave® MX-275 curing system is a high-intensity UV LED flood-curing system. Light energy is delivered in a line pattern instead of the traditional rectangular flood-curing patterns. A single BlueWave® MX-275 emitter provides a 5 mm x 50 mm curing area, but when paired with a multichannel controller, up to four emitters can be used to produce a curing area as large as 5 mm x 200 mm.

BlueWave® MX-275 system emitters are available in three different wavelengths: 365, 385, and 405 nm. As with other emitters from the MX product family, the BlueWave® MX-275 can be set up as a bench-top unit, on an array stand to create extended line patterns, or installed on automated curing processing equipment for maximum flexibility. Emitters can be paired with MX-series single or multichannel controllers.

Systems and Accessories
A complete BlueWave® MX-275 system features a controller/power supply and an LED emitter available in 365, 385, or 405 nm wavelength. Accessories noted below can be added for specific applications. Components are sold separately. Units are warrantied against defects in material and workmanship for one year from date of purchase.

Features

Features

  • High intensity to quickly cure a variety of materials
  • The 5 mm x 50 mm cure area can be scaled up by placing emitters side-by-side to provide a large, continuous band of UV LED energy
  • Very high uniformity across entire cure area over a wide range of working distances
  • Consistent dosage over entire cure area minimizes variation in bond line cure characteristics
  • Well suited for conveyor applications where products move under the light source
  • LED emitters available in 365, 385, or 405 nm wavelengths
  • Controllers have touch screen with full keyboard and separate admin and production modes
  • Instant on-off eliminates warm-up period for a more energy efficient system
  • Efficient LED temperature management and system monitoring

Resources

Resources

System Specifications

Looking for additional technical specifications? Check out our Resource Library or talk with our technical experts.

Get in touch
Property Specifications

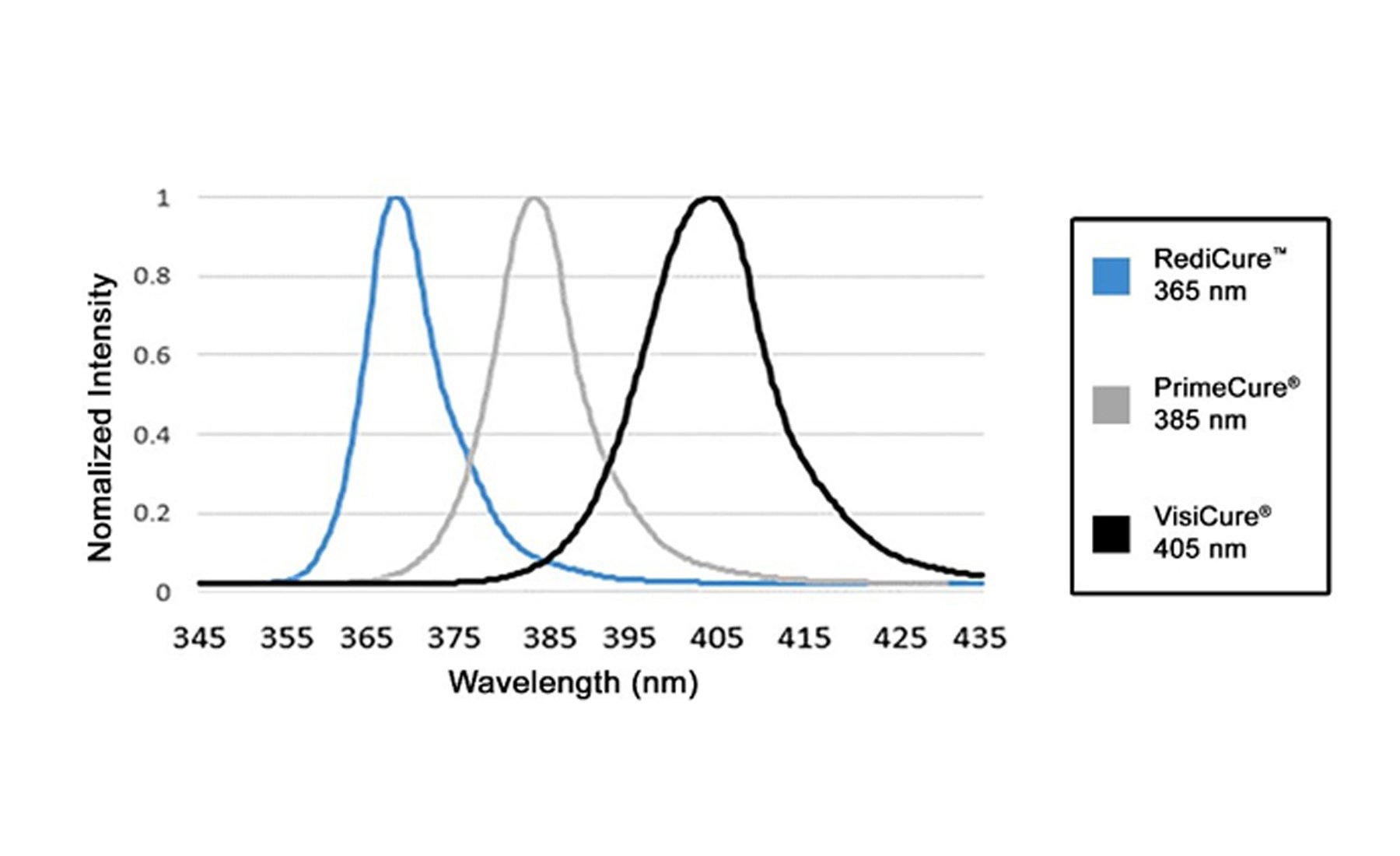

Output Frequency RediCure® Emitter - 365 nm
PrimeCure® Emitter - 385 nm
VisiCure® Emitter - 405 nm
Intensity Output* at 10 mm Working Distance RediCure® Emitter - 1,460 mW/cm2
PrimeCure® Emitter - 1,870 mW/cm2
VisiCure® Emitter - 1,750 mW/cm2
Intensity Output* at 25 mm Working Distance RediCure® Emitter - 960 mW/cm2
PrimeCure® Emitter - 1,220 mW/cm2
VisiCure® Emitter - 1,100 mW/cm2
Power Supply Input 100-240 VAC ≈ 2.5A, 50-60 Hz
LED Timer 0 to 999 seconds
Timer Resolution 0.1 seconds
LED Activation Foot pedal, LCD touch screen, or PLC
Cooling Air Cooled
Dimensions (H x W X D) Controller: 5.77 in x 3.74 in x 6.26 in (14.6 cm x 9.5 cm x 15.9 cm)
Emitter: 7.9 in x 1.97 in x 1.97 in (20.06 cm x 5 cm x 5 cm)
Weight Controller: 2.6 lbs. (1.18 kg)
Emitter: 1.64 lbs. (0.74 kg)
Unit Warranty 1 year from purchase date
Operating Environment 10-40°C, 0-80% non-condensing
* Measured using a Dymax ACCU-CAL™ 50-LED Radiometer with 3-mm aperture set to corresponding light measurement mode. This is preliminary intensity data for reference, tests using flood mode without an aperture will yield different results.

Looking for additional technical specifications? Check out our Resource Library or talk with our technical experts.

Get in touch

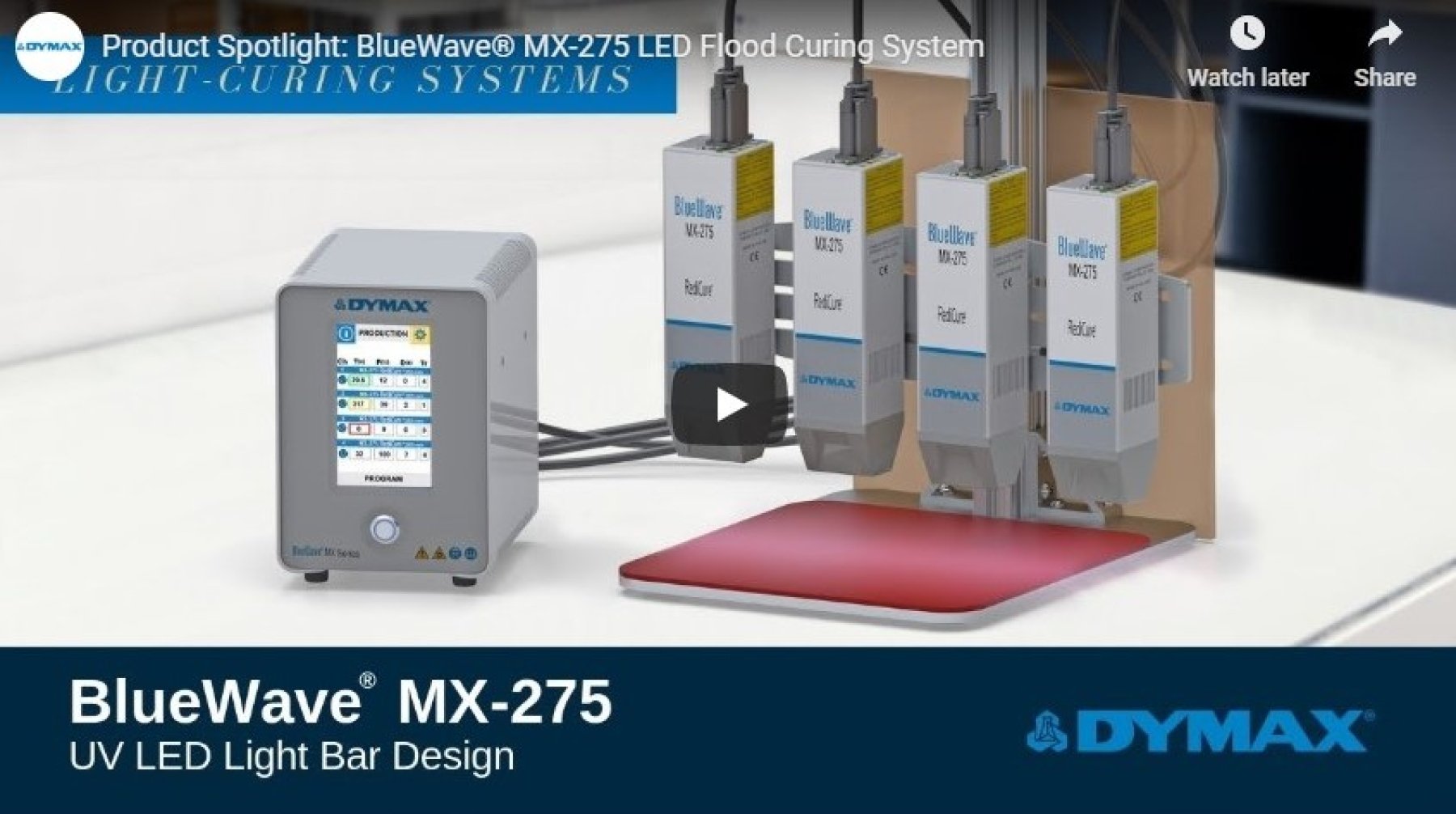

Product Spotlight: BlueWave® MX-275 LED Flood Curing System

The BlueWave® MX-275 curing system is a high-intensity UV LED flood-curing system. Light energy is delivered in a line pattern instead of the traditional rectangular flood curing patterns. A single BlueWave® MX-275 emitter provides a 5 mm x 50 mm curing area, but when paired with a multichannel controller, up to four emitters can be used to produce a curing area as large as 5 mm x 200 mm.

Part Numbers

Build a complete solution or find replacement parts for your project

Limited quantities, please submit RFQ for pricing and availability.

43094

Line Pattern LED Emitters - BlueWave® MX-275 Emitter, RediCure® (365 nm)

Global (CE Marked)

43098

Line Pattern LED Emitters - BlueWave® MX-275 Emitter, PrimeCure® (385 nm)

Global (CE Marked)

43102

Line Pattern LED Emitters - BlueWave® MX-275 Emitter, VisiCure® (405 nm)

Global (CE Marked)

43184

BlueWave® MX-Series 2-Channel Controller - No Power Cord*

*The appropriate power cord will be added for European customers

Note: 2-channel and 4-channel controllers sold without interconnect cables or foot pedals.

Global

43185

BlueWave® MX-Series 2-Channel Controller - North American Power Cord (115V plug)

Note: 2-channel and 4-channel controllers sold without interconnect cables or foot pedals.

North America

43186

BlueWave® MX-Series 2-Channel Controller - Asian Power Cord (Type G)

Note: 2-channel and 4-channel controllers sold without interconnect cables or foot pedals.

Asia

C- 43185 (M20204)

Clearance - BlueWave® MX-Series 2-Channel Controller - North American Power Cord (115V plug)

Global (CE Marked)

43181

BlueWave® MX-Series 4-Channel Controller - No Power Cord*

*The appropriate power cord will be added for European customers

Note: 2-channel and 4-channel controllers sold without interconnect cables or foot pedals.

Global

43182

BlueWave® MX-Series 4-Channel Controller - North American Power Cord (115V plug)

Note: 2-channel and 4-channel controllers sold without interconnect cables or foot pedals.

North America

43183

BlueWave® MX-Series 4-Channel Controller - Asian Power Cord (Type G)

Note: 2-channel and 4-channel controllers sold without interconnect cables or foot pedals.

Asia

C- 43182 (M40025)

Clearance - BlueWave® MX-Series 4-Channel Controller, North American Power Cord

Limited quantities, please submit RFQ for pricing and availability.

Global (CE Marked)

43299

BlueWave® MX-MIM includes only the machine module interface.

Global

42287

Interconnect cable assembly - 2 meter

Global

43010

Interconnect cable assembly - 10 meter

Global

43011

Interconnect cable assembly - 20 meter

Global

43453

12 inch interconnect cable

Global (CE Marked)

41395

Three-Sided Acrylic Shield

A simple and cost-effective shield that is removed manually.

Compatible with BlueWave® LED Flood & BlueWave® MX-250 systems.

Global

42909

Single Emitter Mounting Kit

Mounting stand for attaching MX-series emitters.

Global

43019

Multiple Emitter Mounting Kit

Compatible with Standard Mounting Stand (Part #41268).

Global

43070

MX-Series Multiple Emitter Stand with Acrylic Back

Mounting stand with an acrylic back shield for multiple MX emitters. Compatible with stand (Part # 41395)

Global

43496

Foot switch with extended cable

Global (CE Marked)

40505

ACCU-CAL™ 50-LED Radiometer Kit for LED Spots, Floods, and BlueWave® QX4®

Global (CE Marked)
