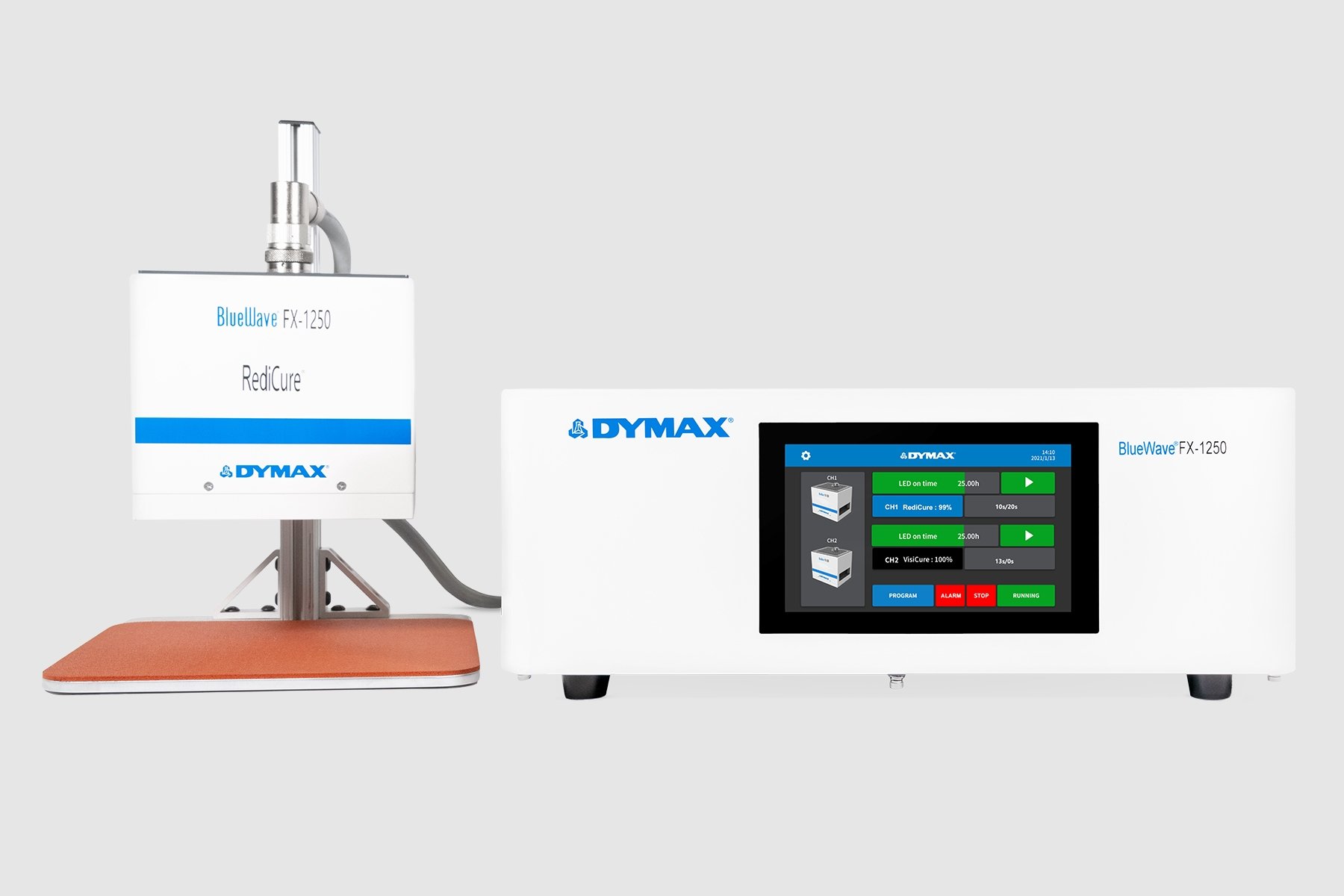

BlueWave FX-1250
High Intensity LED Flood-Curing System that Delivers True, High Irradiance LED Light

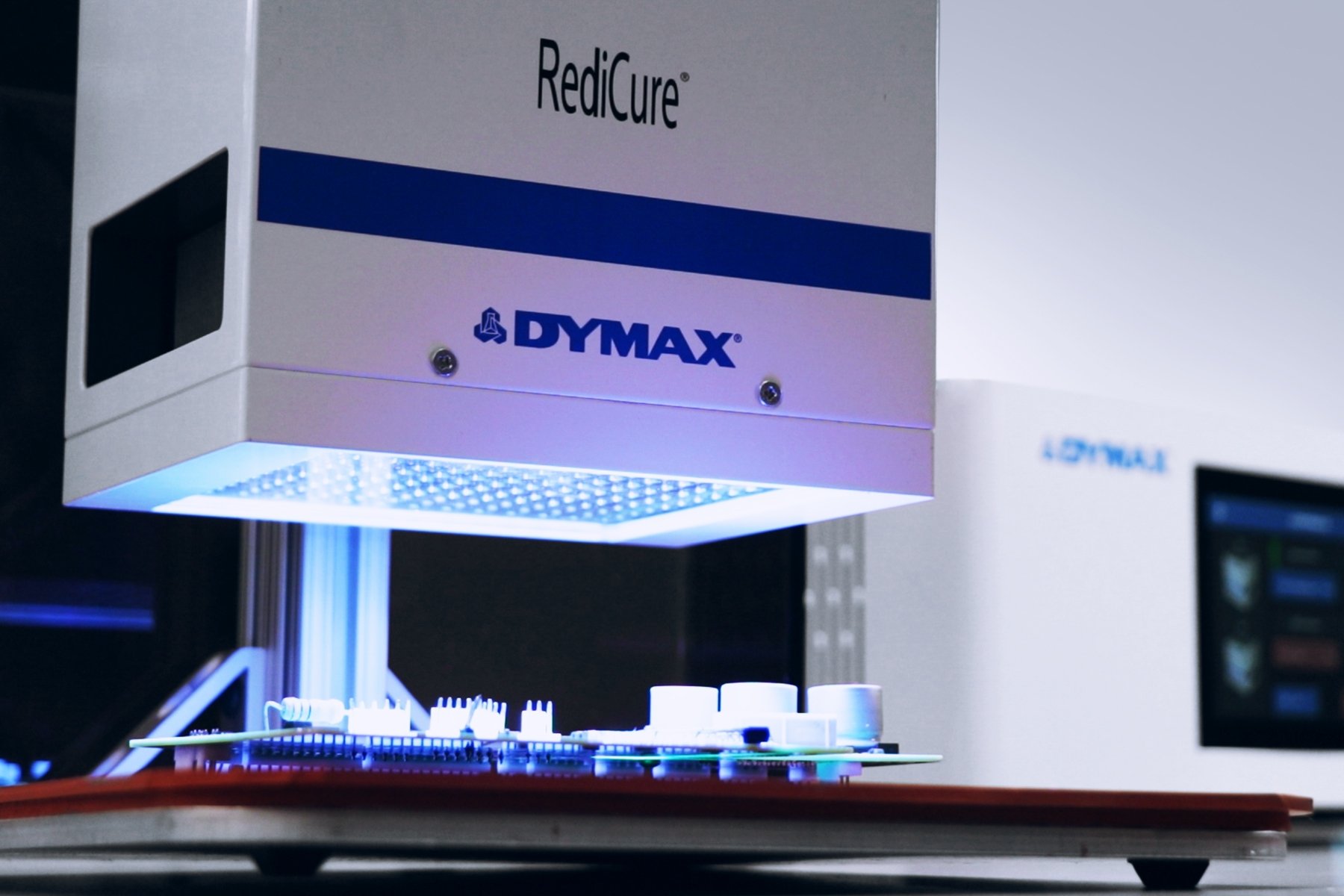

The BlueWave® FX-1250 is a high intensity LED flood-curing system that delivers true, high irradiance LED light for the best speed, depth, and fullness of cure from Dymax LED emitters. For the user who needs flood curing systems for large areas, the unit combines intensities over 2W/cm2, with a 5” x 5” (127 mm x 127 mm) curing area and high uniformity to provide a superior cure.
The system has an easy-to-use control platform, featuring a 7” touch screen with an intuitive interface. It can be activated, controlled, and remotely monitored by PLC, and also store programs and parameters for repeatable processes. The controller enhances the diagnostics by continuously monitoring the health of the emitters and controller, and reporting faults directly to the controller screen. A single controller can operate up to two emitters to save on cost and space in the installation. Use extra emitters to increase the area or light delivery, or use multiple wavelengths to extend application flexibility.
Additionally, the BlueWave® FX-1250 utilizes LED curing technology which provides quiet, efficient operation while also minimizing heat emission. The system is coupled with a full suite of accessories including a stand and full light shield for maximum flexibility.
Features
Features
- High intensity, high total irradiance for quick curing
- Large 5” x 5” (127 mm x 127 mm) curing area
- Excellent uniformity

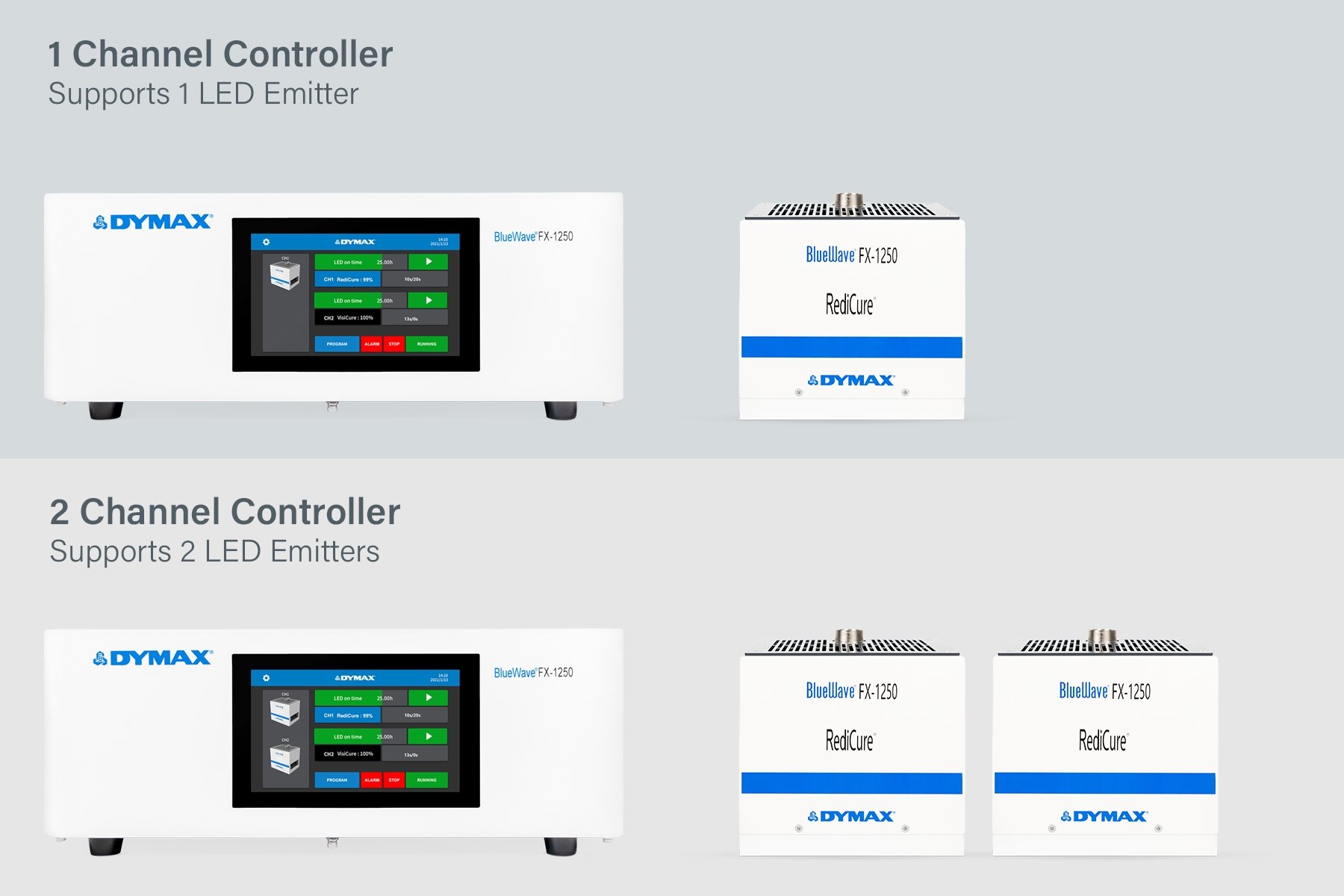

- One controller operates up to two channels
- LED heads for 365, 385, or 405 nm wavelengths for better compatibility with different light-curable materials
- Fully programmable and can store up to 16 programs
- PLC touch screen interface that easily incorporated into automated systems
- Efficient LED temperature management for continuous operation without overheating
- Instant on-off – no warm-up period and more energy efficient
Resources
Resources
Manual
Product Bulletin
Selector Guide
Equipment Drawings
How To
Technical Bulletin
System Specifications
Looking for additional technical specifications? Check out our Resource Library or talk with our technical experts.
Get in touch| Property | Specifications |
|---|---|
| Output frequency | RediCure: 365 nm |
| PrimeCure: 385 nm | |
| VisiCure: 405 nm | |
| Intensity Output | RediCure: 1.7 W/cm² |
| PrimeCure: 2.1 W/cm² | |
| VisiCure: 2.0 W/cm² | |

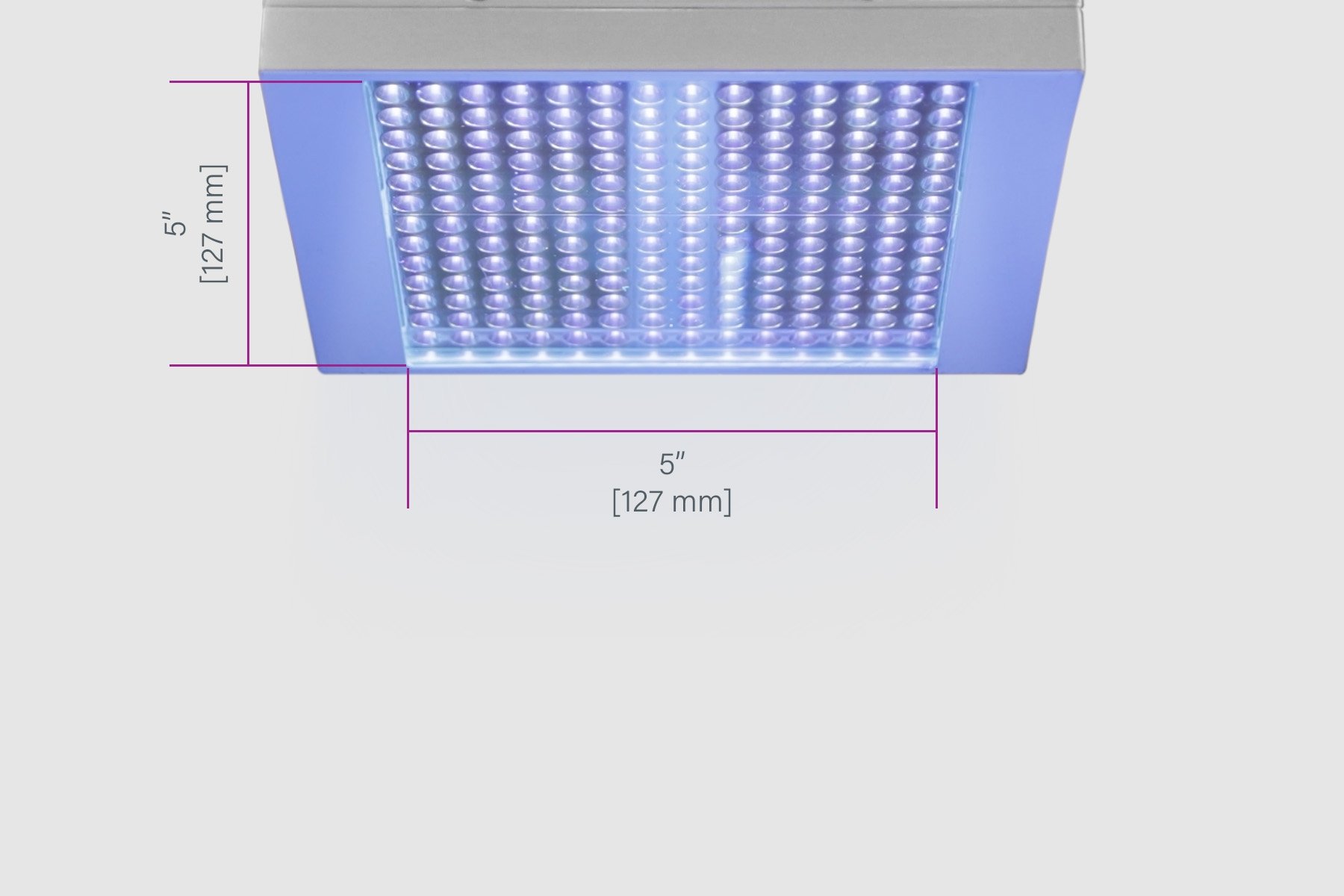

| Curing Area | 5” x 5” [127 mm x 127 mm] |
| Power Requirements | 100-240 V≈ 10 Amps, 50-60 Hz |
| Cooling | Air cooled |

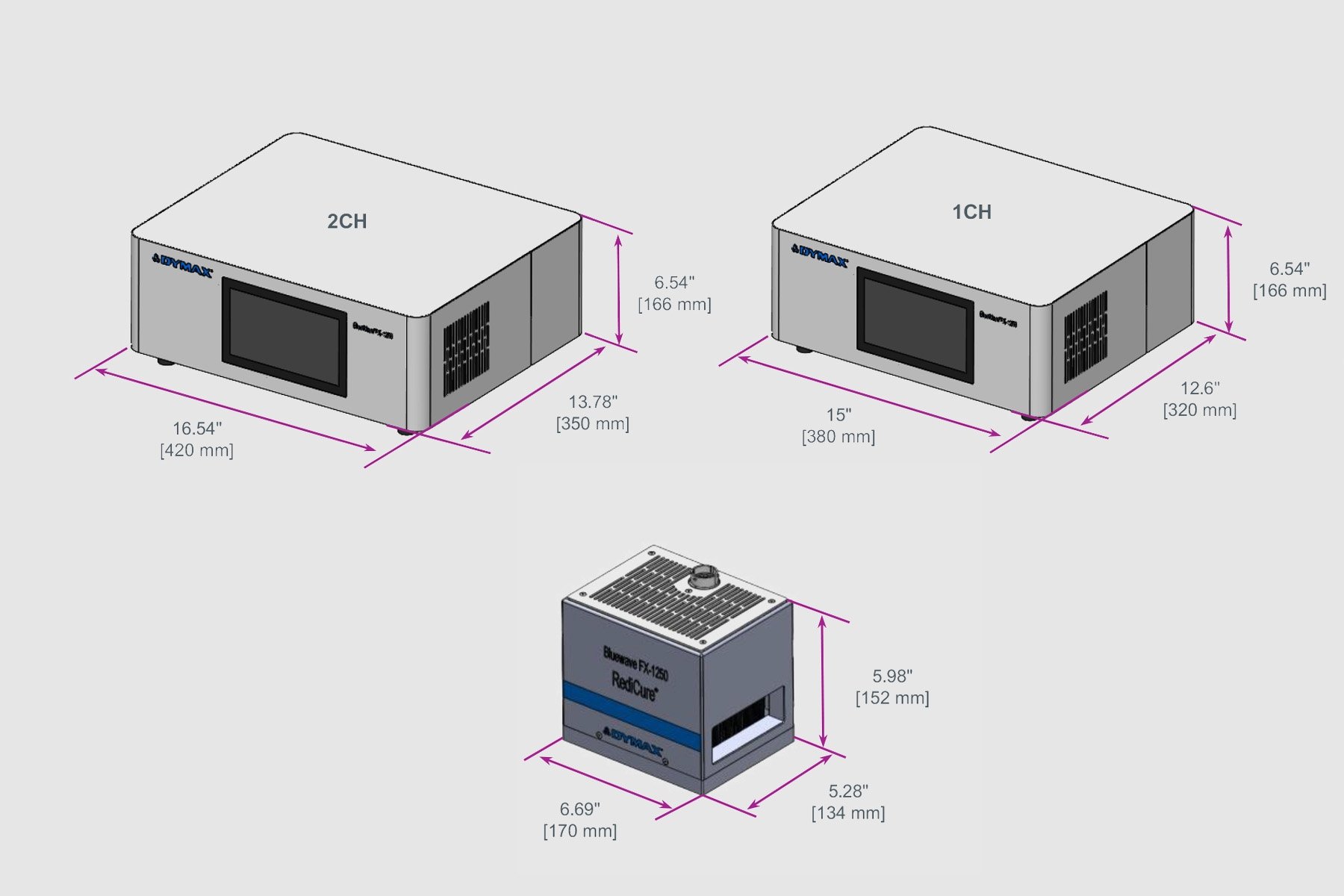

| Dimensions (W x D x H) | 1 CH Controller: 380 mm (15”) x 320 mm (12.6”) x 165 mm (5.8”) (WxHxL) |
| 2 CH Controller: 420 mm (16.5”) x 350 mm (13.8”) x 165 mm (5.8”) (WxHxL) | |
| Emitter: 170 mm (6.7”) × 134 mm (5.3”) x 162 mm (6.4”) (WxHxL) | |
| Weight | 1 CH Controller: 12.8 kg (28.2 lb) |
| 2 CH Controller: 19.8kg (43.7lb) | |
| Emitter: 4 kg (8.8 lb) | |
| Unit Warranty | 1 year from purchase date |
| Operating Environment | 10°C to 40°C (50°F to 104°F) 0-80% relative humidity, non-condensing, 2000-meter max. altitude |
| Shipping and Storage Conditions | Temperature: -20°C to +50°C |
| Humidity 10-80% RH, Non-condensing | |
| Ship via standard ground, ocean, or air freight | |
| Certifications | RoHS, CE Marked |
Looking for additional technical specifications? Check out our Resource Library or talk with our technical experts.
Get in touchProduct Spotlight: BlueWave® FX-1250 LED Flood Lamp
How to Setup & Operate the BlueWave FX-1250 LED Flood Lamp
Part Numbers
Build a complete solution or find replacement parts for your project
Limited quantities, please submit RFQ for pricing and availability.
BlueWave® FX 1250 Complete System with RediCure (365 nm)
88848
Includes 1 controller, interconnect cable, 1 emitter, foot switch, and North American power cord
88856
Includes 1 controller, interconnect cable, 1 emitter, foot switch, and no power cord
*The appropriate power cord will be added for European customers
88859
Includes 1 controller, interconnect cable, 1 emitter, foot switch, and Asian Power Cord (Type G)
BlueWave® FX 1250 Complete System with PrimeCure (385 nm)
88849
Includes 1 controller, interconnect cable, 1 emitter, foot switch, and North American power cord
88857
Includes 1 controller, interconnect cable, 1 emitter, foot switch, and no power cord
*The appropriate power cord will be added for European customers
88860
Includes 1 controller, interconnect cable, 1 emitter, foot switch, and Asian Power Cord (Type G)
BlueWave® FX 1250 Complete System with VisiCure (405 nm)
88855
Includes 1 controller, interconnect cable, 1 emitter, foot switch, and North American power cord
88858
Includes 1 controller, interconnect cable, 1 emitter, foot switch, and no power cord
*The appropriate power cord will be added for European customers
88861
Includes 1 controller, interconnect cable, 1 emitter, foot switch, and Asian Power Cord (Type G)
Accessories & Spare Parts
81016
3-Sided Acrylic Shield
84025

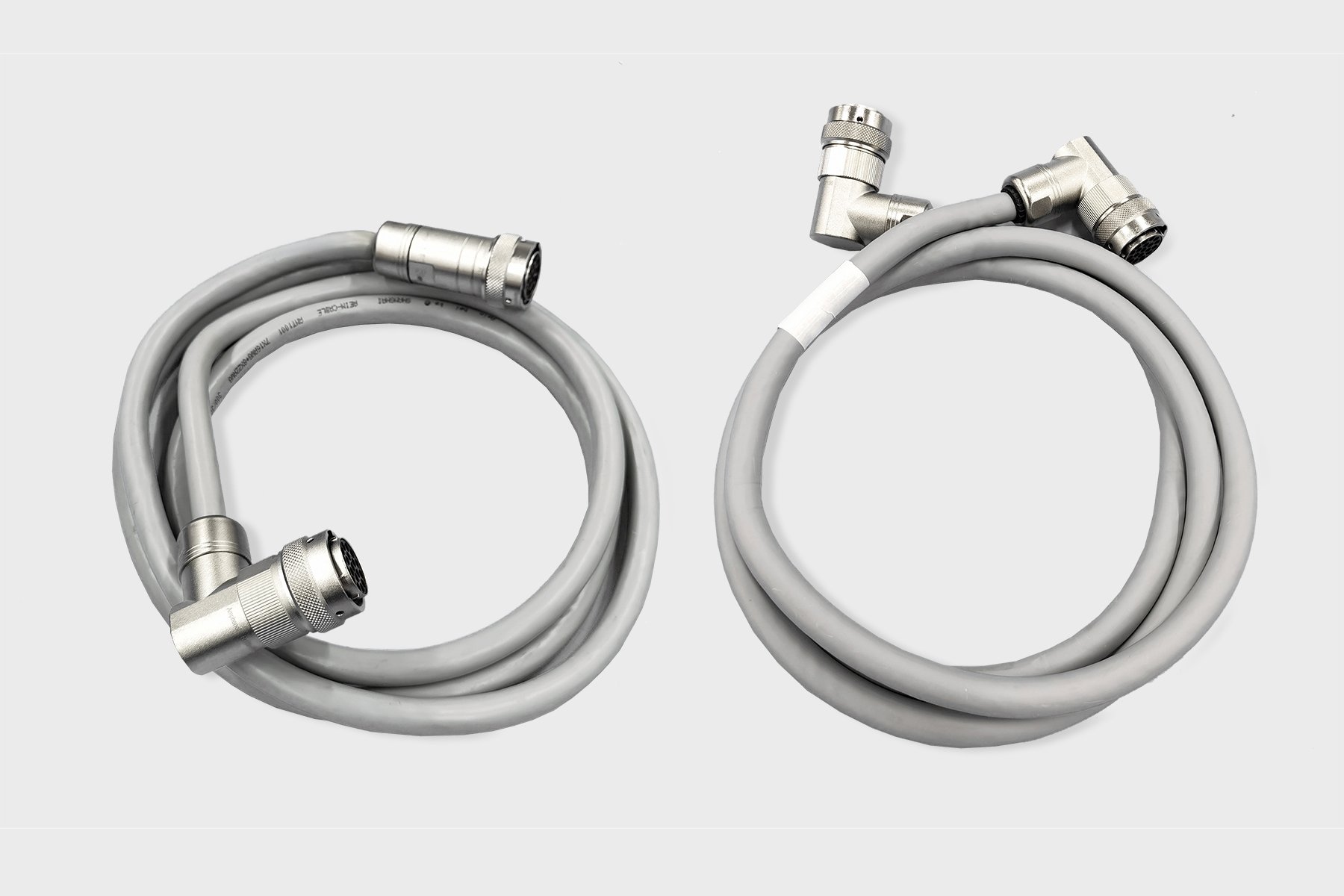

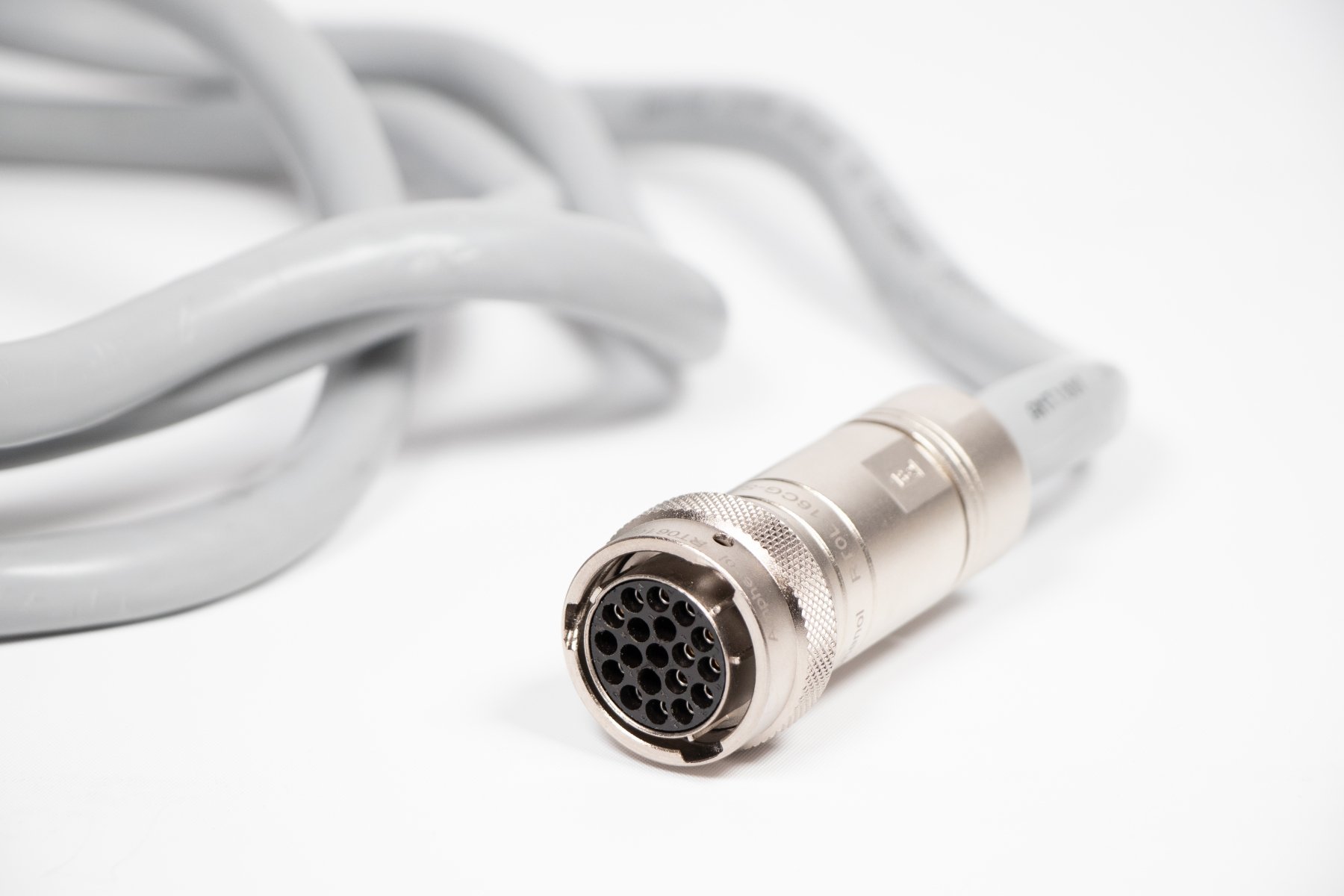

Interconnect Cables - Type L & L
84026
Interconnect Cables - Type I & L
84306
Extension Cables - 5 m - Type I & I
84307
Extension Cables - 5 m - Type I & L
88801
RediCure® (365 nm) Emitter
88802
PrimeCure® (385 nm) Emitter
88803
VisiCure (405 nm) Emitter
88804
2 Channel Controller - Asian Power Cord
88805
1 Channel Controller - Asian Version
88844
Mounting Stand with Acrylic Back Shield. Includes mounting carriage PN 60036
88845
Light Shield 360° shielding. Swing-up door and slide-out shelf. Not compatible with Dymax shutters
88846
1 Channel Controller - North American Version
88847
2 Channel Controller - North American Power Cord
88850
1 Channel Controller - No Power Cord*
*For customers in Europe, the appropriate power cord will be added
88851
2 Channel Controller - No Power Cord*
*The appropriate power cord will be added for European customers
Radiometer
40505
ACCU-CAL® 50-LED Radiometer Kit
Note. The intensity of the BlueWave® FX-1250 can be measured using flood-lamp intensity mode for the initial process and operational setup.
